S-5-K HD w/Insert

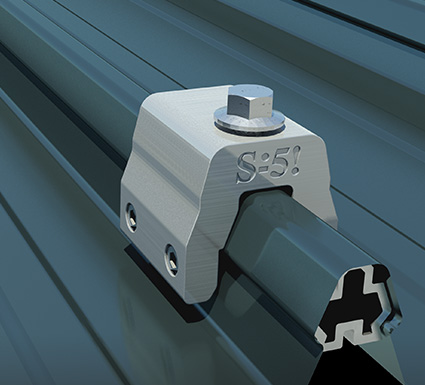

S-5-KHD Clamp

Designed primarily for new construction, the S-5-KHD clamp fits the very distinctive profiles of the Lysaght® Klip-Lok® 406, McElroy Mirage, Metal Sales Clip-Loc, and AEP Span Klip-Rib®. This clamp features an insert that is placed on the intermediate seam for extra hold. Significantly stronger than anything else on the market for these profile types, this clamp is geared for snow retention systems and other heavy duty applications in new construction where holding strength is critical.

Product Specifications:

• Existing construction – S-5-KHD 3″ insert available – slides into the rib at the eave
• New construction – S-5-KHD 6″ insert available – installed as the roof goes on
• Can be used in conjunction with the S-5-K Grip Snow when more than one row of snow retention is needed on a retrofit project
• Four T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included
