S-5-T
The S-5-T is specifically designed for profiles featuring a “T”-shaped seam configuration. Easily install the two-piece design anywhere along the seam.
Categories: Featured, Utility Clamps
Applications: ColorGard, Solar, Utility Clamps, X-Gard
Brand:
S-5!
S-5!
S-5-T

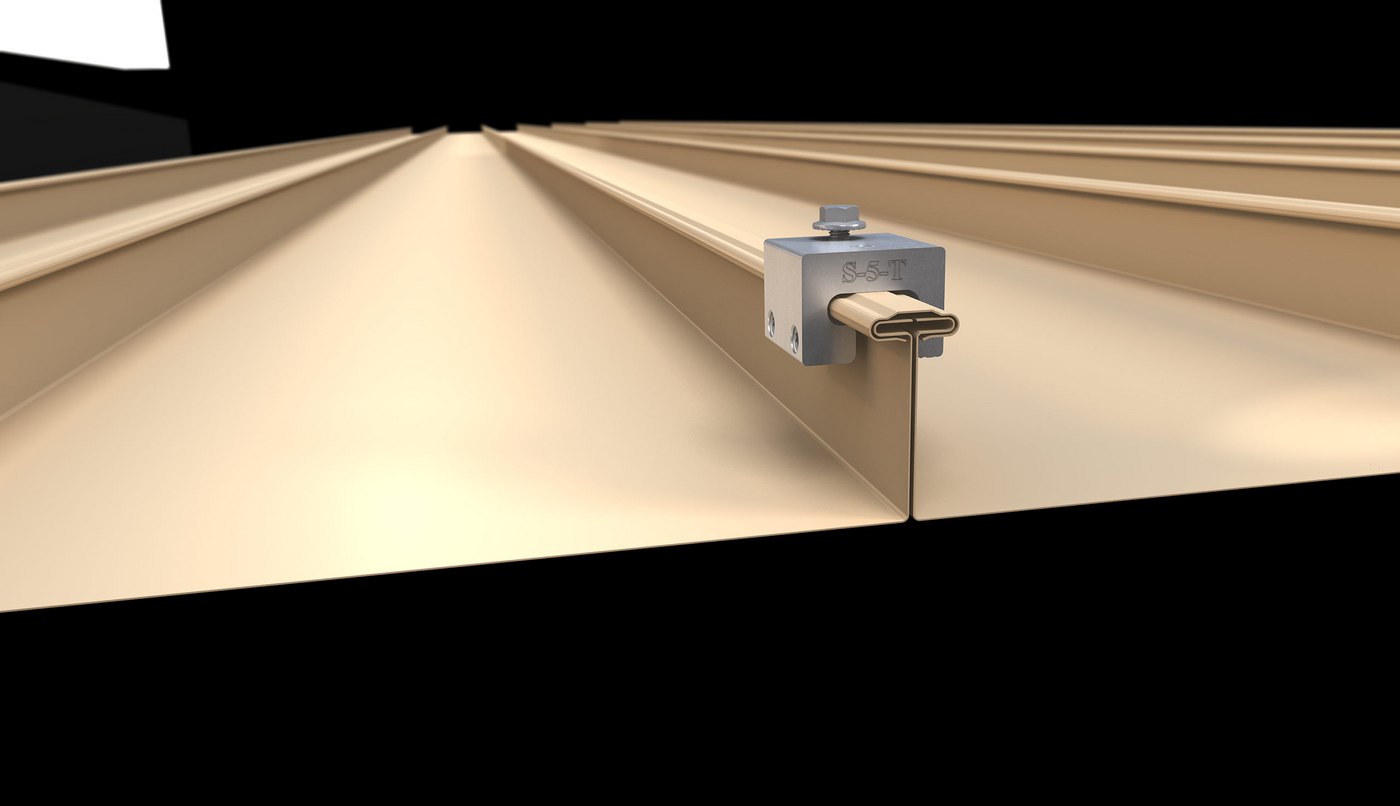

The S-5-T clamp is specially developed to fit profiles having a “T” shaped seam configuration. It will also work on architectural “single-fold,” or “horizontal seam” profiles having a horizontal projection of 5/8” or less. Its two-piece design allows it to be easily installed anywhere along the length of the panel seam.

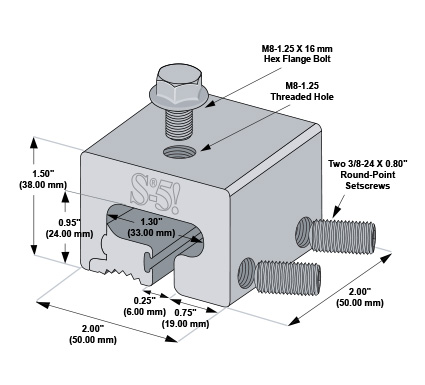

Product Specifications:
- Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
- Two-piece design allows the clamp to be placed over the top of the seam at any desired location
- Fits architectural single-fold (or “angle-seam”) and horizontal seams with a horizontal dimension ≤ 5/8” (15 mm)
- Heavy-duty applications, such as snow retention
- Two T-30 Torx round-point setscrews (Torx bit tip provided)
- One M8 bolt included
