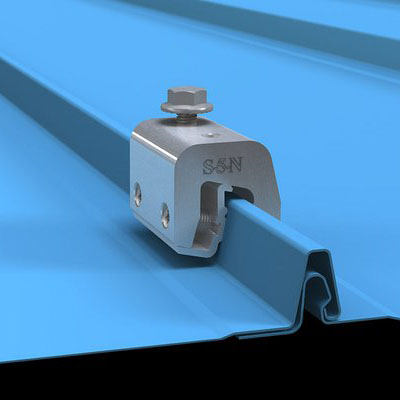

S-5! S-5-N Utility Clamp
S-5! S-5-N Utility Clamp

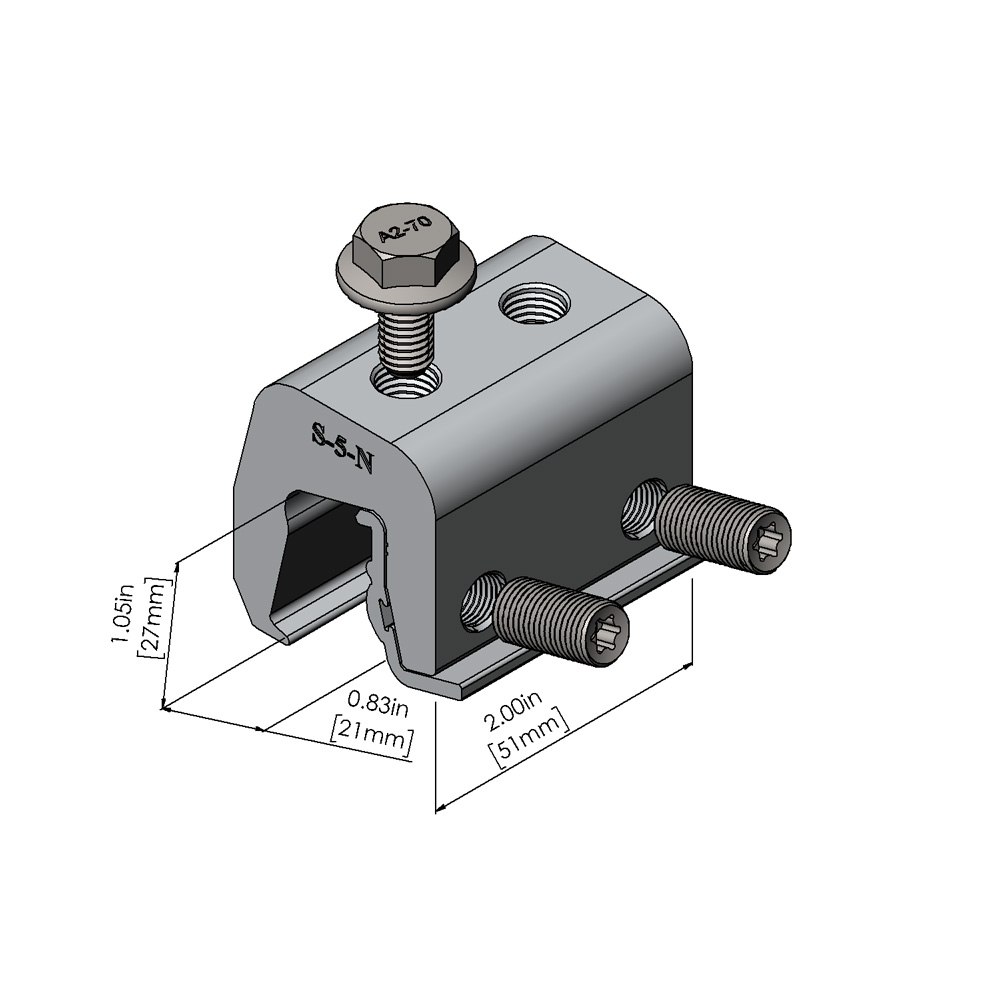

S-5! S-5-N Clamp Diagram
S-5! S-5-N Clamp Diagram

S-5-N Clamp

Angled Setscrews and an Innovative Insert Ensures a Superior Fit to Most Nail Strip Profiles.

  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included



Add to Quote
Category: Applications: , , , , , Brand: S-5! BrandS-5!

Your Mounting Solution for 1” (25 mm) Nail-Flange Metal Roof Profiles

The S-5-N (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp.

The N fits popular 1″ nail strips, such as: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, McElroy Metals’ Meridian, New Tech Machinery’s FF100 and roofing types with similar profiles.

For nail strip profiles with 1.5” seam height, see “S-5-N 1.5.”

Choose the N to mount to nail flange metal roof profiles with a base of rib dimension ≤ .82” (20 mm). Check also the S-5-NH 1.5 for matching to other seam dimensioning, such as NewTech FF150 and VicWest Prestige.

Product Specifications:

  • Angled setscrews for easy installation; no special tools required
  • Special design for “nail-flange” SSR profiles ≤ 1” (25 mm) in height and with a base of rib dimension < .82” (20 mm)
  • Clamp insert facilitates best-fit without damage to panel seam
  • Use for heavy-duty applications, such as snow retention
  • Two T-30 Torx round-point setscrews (Torx bit tip provided)
  • One M8 bolt included
