S-5-Q
S-5!S-5-Q

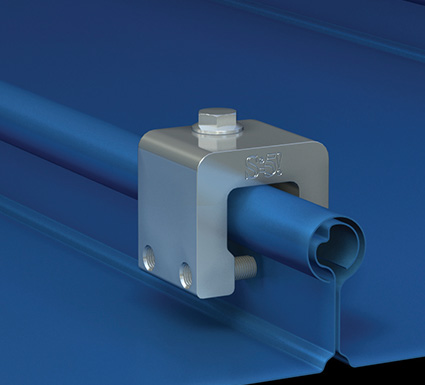

The S-5-Q clamp was specifically developed to accommodate metal roof panels having a large, round “bulb” seam configuration up to 29 mm. It will also fit smaller bulb-shaped profiles that were not seamed correctly, allowing the seam to be utilized without modification. The clamp’s two-piece design allows it to be easily installed anywhere along the length of the rib, making installation a snap! Just place the clamp on the seam, position the insert piece, and tighten the setscrews.
Product Specifications:
- Fits all of the profiles the Z fits and also accommodates standing seam metal roof panels with large, round “bulb” seam configurations up to 1.14” (29 mm) in diameter
- Heavy-duty applications, such as snow retention
- Two T-30 Torx round-point setscrews (Torx bit tip provided)
- One M8 bolt included
