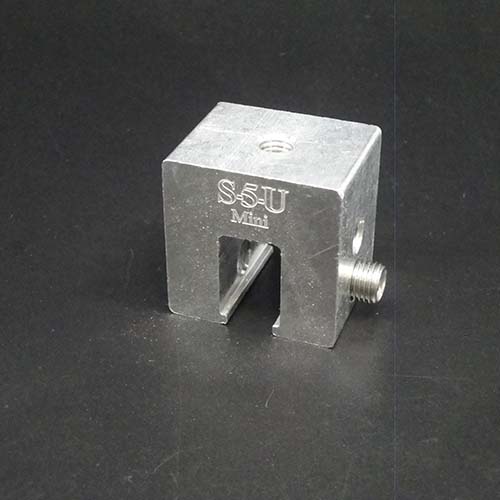

S-5 U Mini No Bolt
S-5 U Mini No Bolt

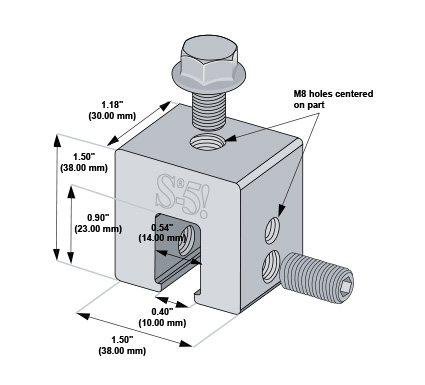

S-5! S-5-U Mini Diagram
S-5! S-5-U Mini Diagram

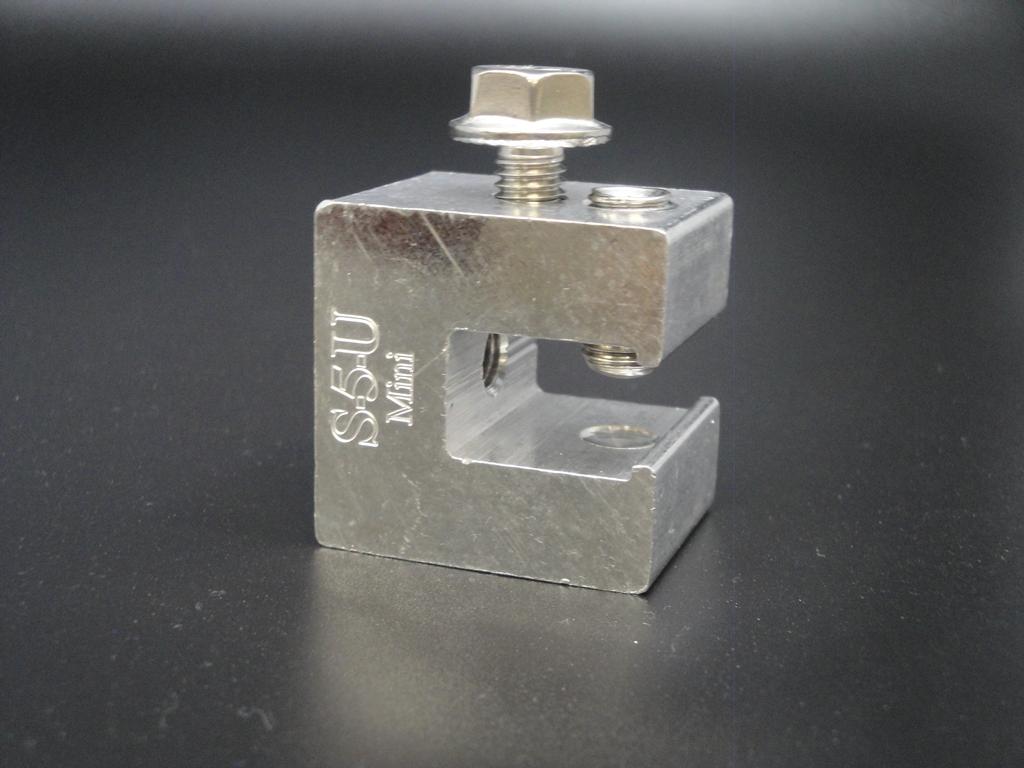

S-5-U Mini Horizontal View
S-5-U Mini Horizontal View

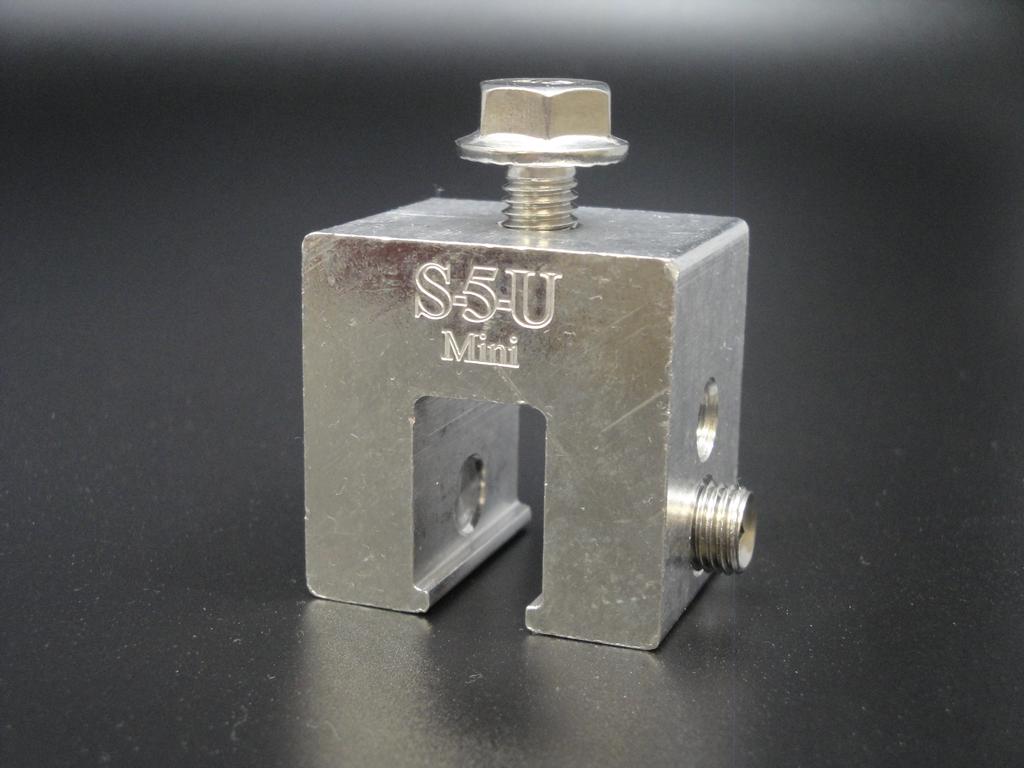

S-5-U Mini
S-5-U Mini

S-5-U Mini (No Bolt)

The S-5-U clamp is designed to mount snow guards and solar modules to both vertical and horizontal standing seam metal roofs.

  • No M8 bolt included (sold separately)
Add to Quote
Category: Applications: , , , , Brand: S-5! BrandS-5!

The S-5-U Mini is a bit shorter than the S-5-U and has one setscrew rather than two. The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment—just about anything!

Product Specifications:

  • Accommodates most standing seam profiles in North and South America, including structural and architectural profiles
  • Use on vertically-oriented seams, OR
  • Rotate clamp 90° and use on most horizontal seam profiles w/ horizontal projection ≥ 0.65” (16.5 mm)
  • Use for light and medium-duty applications, such as utility mounting and solar PV
  • Smaller than the standard S-5-U
  • One T-30 Torx round-point setscrew (Torx bit tip provided)
  • No M8 bolt included
